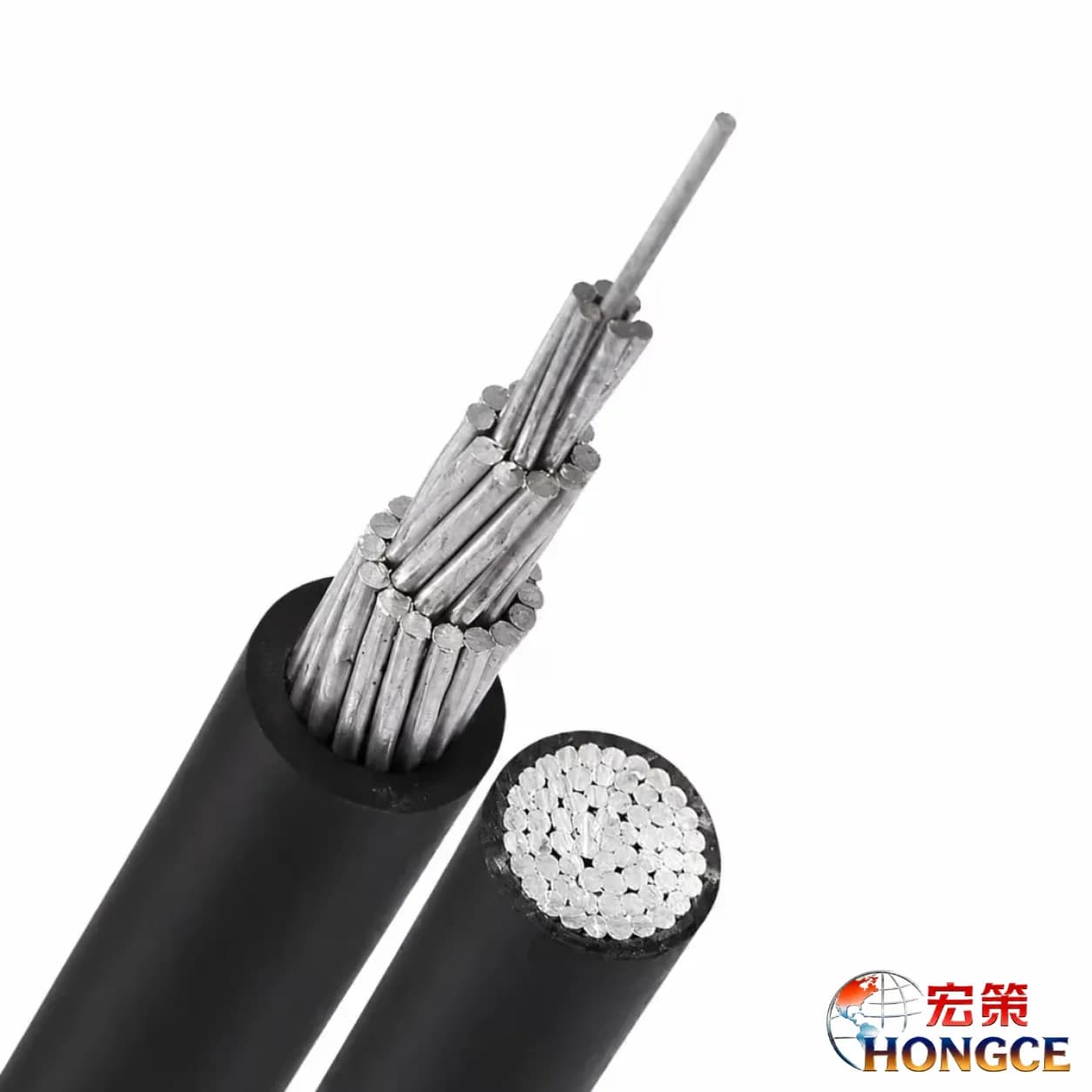

JKLYJ 10kV Aluminum Conductor XLPE Insulated Overhead Cable
JKLYJ 10kV single-core aluminum overhead cable with XLPE insulation, designed for dependable rural and suburban power distribution.
Technical Specifications
| Rated Voltage | 8.7/10 kV |
| Conductor Material | Aluminum |
| Conductor Construction | Stranded Aluminum |
| Insulation Material | XLPE |
| Rated voltage | 8.7/10 kV |
| Insulation Thickness | 3.4 mm（Reference value） |
| Outer Diameter | Approx. 21.0 mm（Reference value） |
| Approx. Weight | 551 kg/km（Reference value） |
| Max. DC Resistance at 20°C | 0.253 Ω/km |
| Application | 10kV Overhead Power Distribution Networks |
Compliance Standards
- ✓GB/T 14049-2008
Overview
JKLYJ is designed for 10kV overhead distribution, combining an aluminum conductor with cross-linked polyethylene (XLPE) insulation in a single-core construction. The 1×120 mm² configuration helps match cable selection to project needs. For rural and suburban networks, it offers distributors, contractors, and utility buyers a practical option for dependable power delivery and cost-conscious procurement. Confirm applicable standards and ratings against project requirements before ordering.
Key Features
Reliable 10kV Power Distribution
Designed for 10kV overhead power distribution networks, providing a practical cable solution for rural electrification, suburban grids, and power infrastructure projects.
Cost-Effective Aluminum Conductor
Features an aluminum conductor that offers a lightweight, economical alternative to copper for overhead distribution applications, helping buyers balance material costs and project requirements.
XLPE Electrical Insulation
Uses cross-linked polyethylene (XLPE) insulation to provide electrical insulation and support dependable operation under specified service conditions.
Optimized 120mm² Configuration
The 1×120mm² single-core design supports project-specific conductor sizing and helps distributors and contractors select suitable cable configurations for their network requirements.
Suitable for Overhead Applications
Designed for overhead distribution installations, making it a practical option for utility projects, rural power networks, and infrastructure upgrades where insulated conductors are specified.
Flexible B2B Procurement Solution
Suitable for cable distributors, electrical contractors, utility suppliers, and infrastructure project buyers seeking aluminum overhead insulated cables for 10kV distribution applications.
Applications

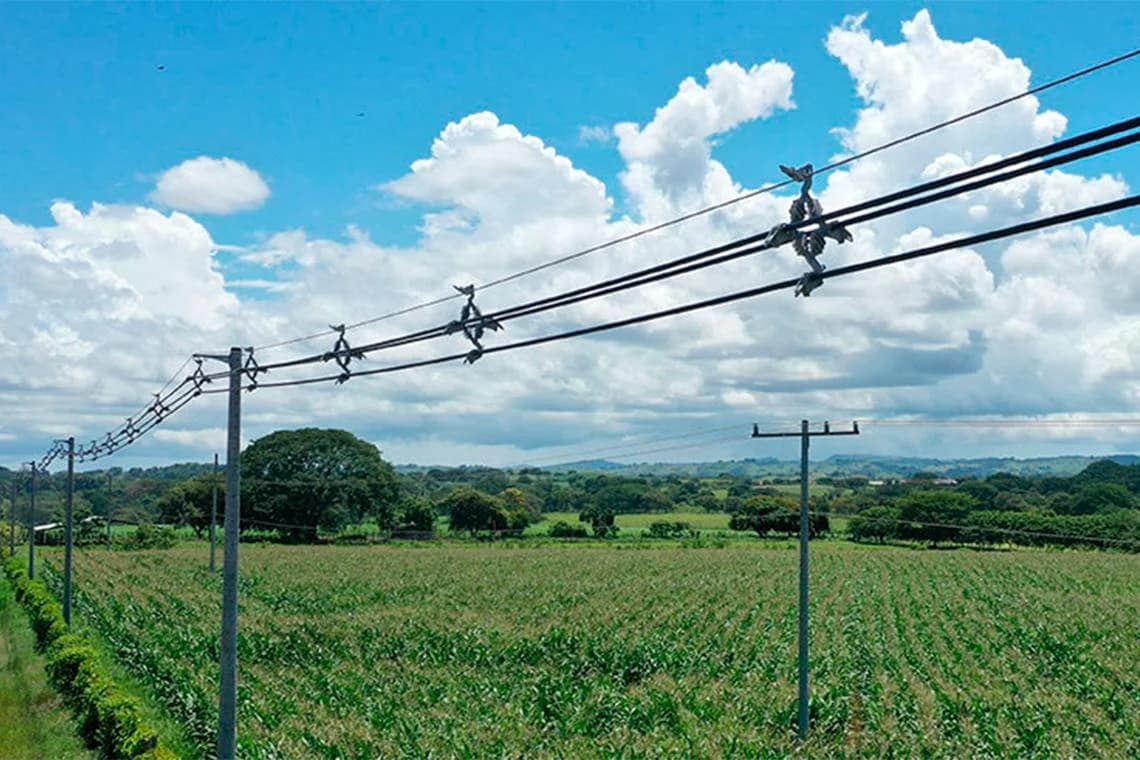

Rural Power Distribution
Insulated overhead conductors for rural power networks, delivering electricity to farms, villages, and agricultural facilities.

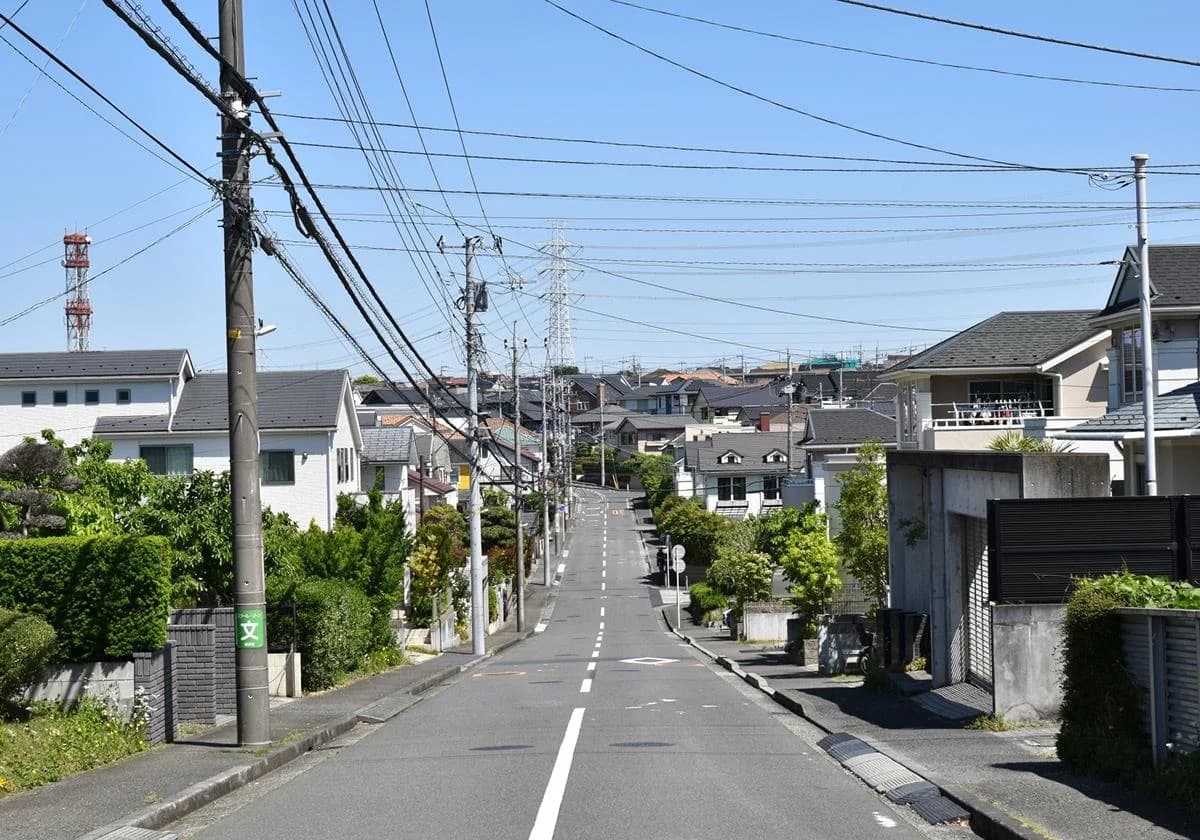

Suburban Distribution Networks
Designed for suburban overhead distribution networks serving residential communities, commercial facilities, and public infrastructure.

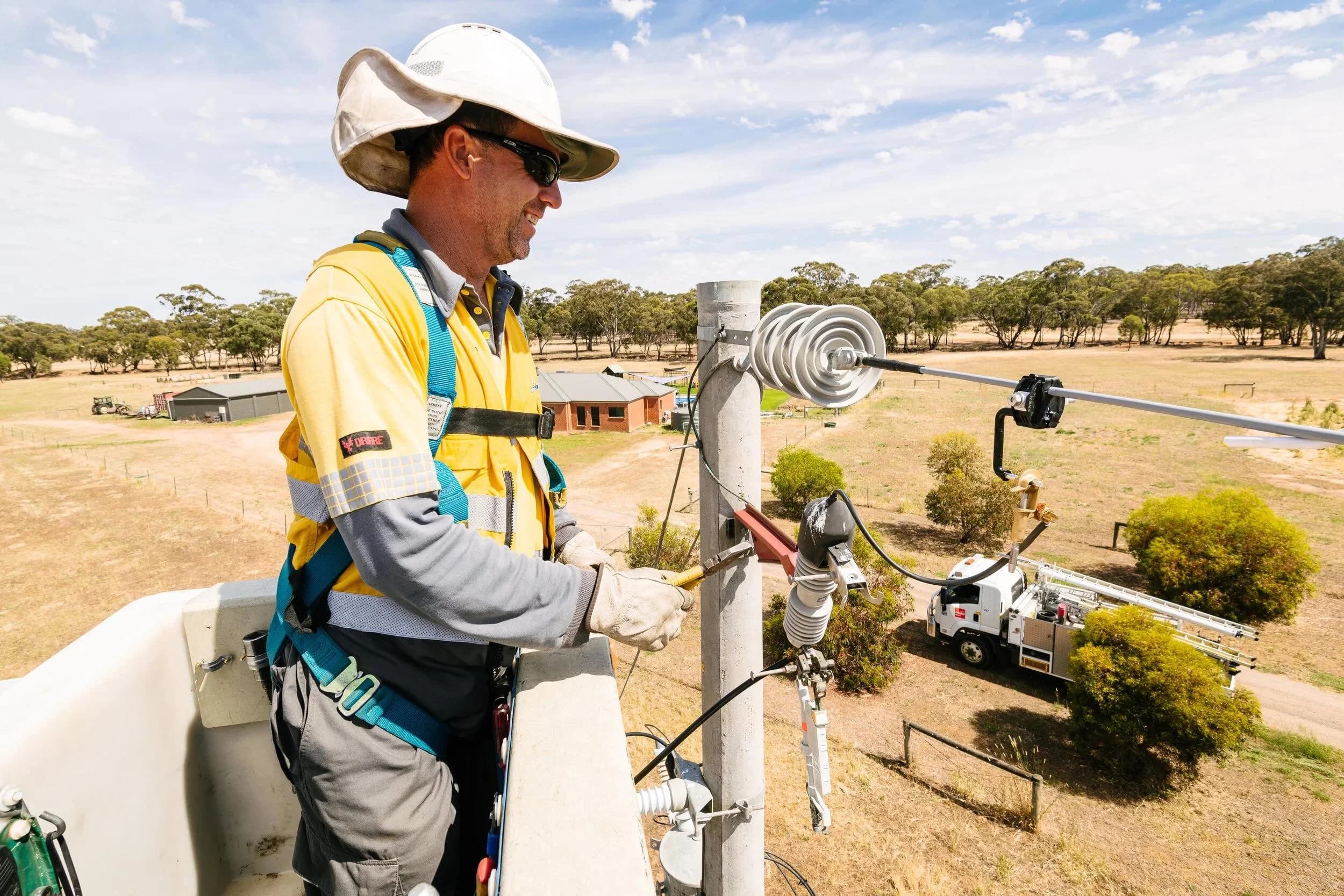

Power Line Construction and Upgrades
Suitable for overhead line construction, network reinforcement, and upgrades, subject to project electrical and installation requirements.

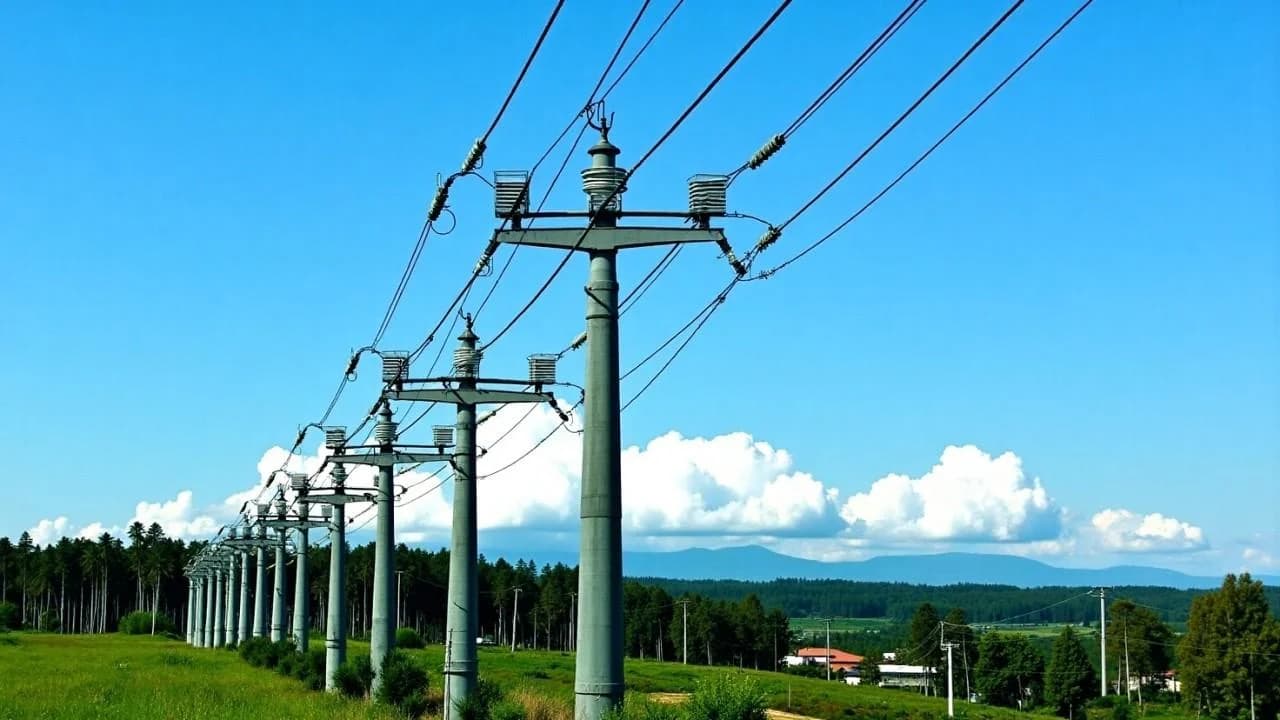

Rural Electrification Projects
Designed for rural electrification and distribution expansion, with 10kV, 1×120mm² sizing selected to meet project requirements.
