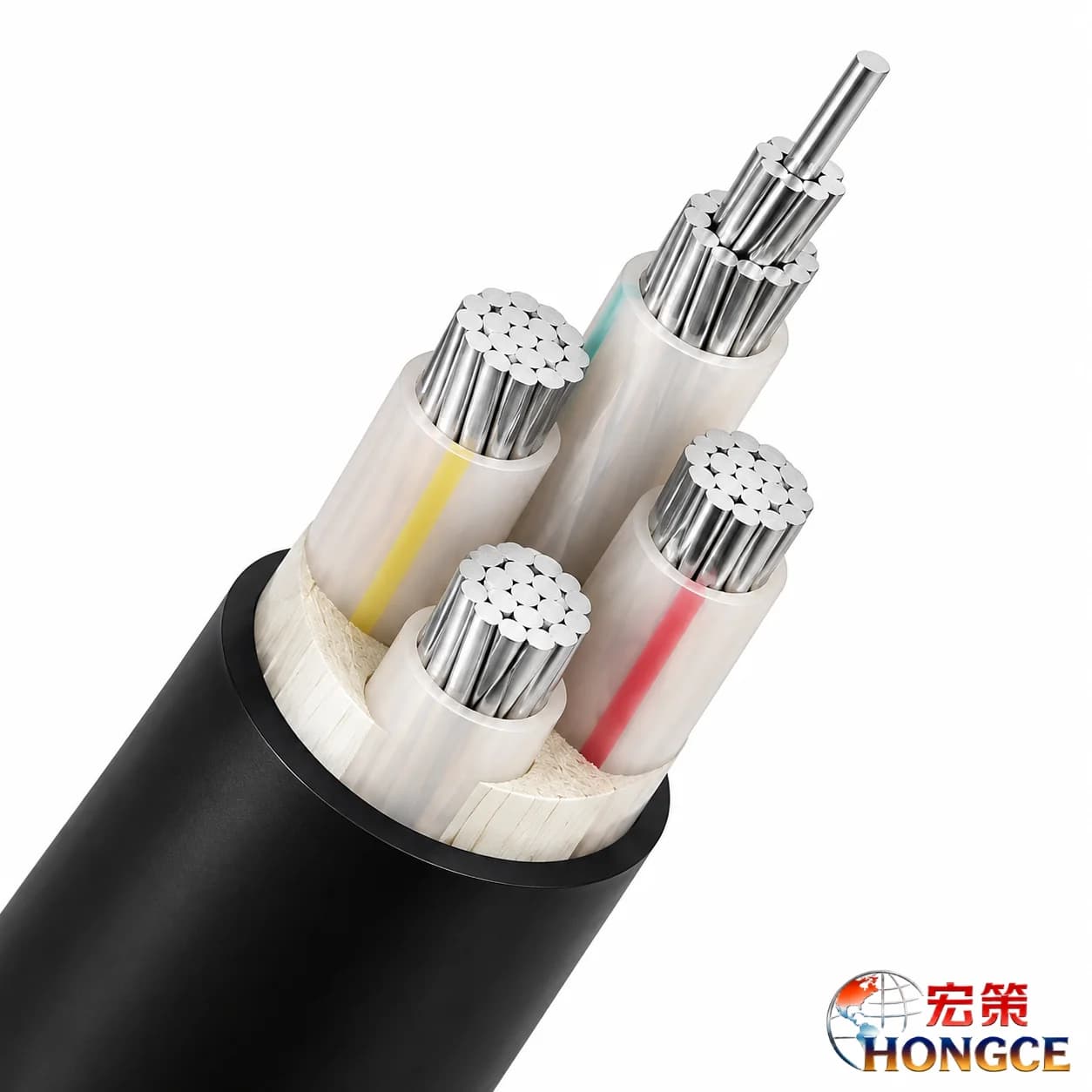

YJLV 0.6/1kV Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
YJLV 0.6/1kV Aluminum XLPE Power Cable features lightweight aluminum conductors, reliable XLPE insulation and PVC sheath for efficient power distribution.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Aluminum Conductor |
| Conductor Class | Class 1 solid aluminum conductor or Class 2 stranded aluminum conductor (IEC 60228) |
| Insulation System | XLPE insulation providing stable electrical performance and thermal resistance |
| Outer Sheath | PVC sheath providing protection against moisture, abrasion and environmental conditions |
| Cable Structure | Aluminum Conductor + XLPE Insulation + PVC Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 / GB/T 12706.1 |
| Continuous Operating Temperature | 90℃ maximum conductor temperature |
| Emergency Short Circuit Temperature | 250℃ maximum (5 seconds) |
| Core Availability | Single Core, 2 Core, 3 Core, 4 Core and 5 Core designs |
| Available Sizes | 2.5mm² to 630mm² (Customized sizes available) |
| Installation Method | Indoor, cable tray, conduit, cable trench and underground duct installation |
Compliance Standards
- ✓IEC 60502-1
- ✓IEC 60228
- ✓GB/T 12706.1
Overview
YJLV 0.6/1kV Aluminum XLPE Power Cable is designed for low voltage power distribution systems requiring lightweight and economical cable solutions. Manufactured with high-quality aluminum conductors, XLPE insulation and PVC outer sheath, it provides stable electrical performance, excellent insulation reliability and long service life. The cable is widely used in industrial facilities, commercial buildings, underground cable networks and power distribution projects. With excellent corrosion resistance and reduced weight compared with copper conductor cables, YJLV cable helps optimize installation costs while maintaining reliable power transmission performance. Hongce Cable provides YJLV cables according to IEC 60502-1 and GB/T 12706.1 standards, with customized conductor sizes, core configurations and production options available for global electrical projects.
Key Features
Lightweight Aluminum Conductor
Uses high-quality aluminum conductors to reduce cable weight and installation load while providing reliable electrical performance for low voltage power distribution systems.
Reliable XLPE Insulation Performance
XLPE insulation provides excellent dielectric strength, thermal stability and long-term insulation reliability under continuous operating conditions.
Durable PVC Protective Sheath
PVC outer sheath offers good resistance to moisture, abrasion and environmental stress, ensuring stable cable performance in various installation conditions.
Cost-Effective Power Transmission Solution
The aluminum conductor design provides an economical alternative to copper cables while maintaining efficient power transmission for industrial and commercial projects.
Flexible Installation Applications
Suitable for indoor installation, cable trays, conduits, cable trenches and underground power distribution networks with customized configurations available.
Applications

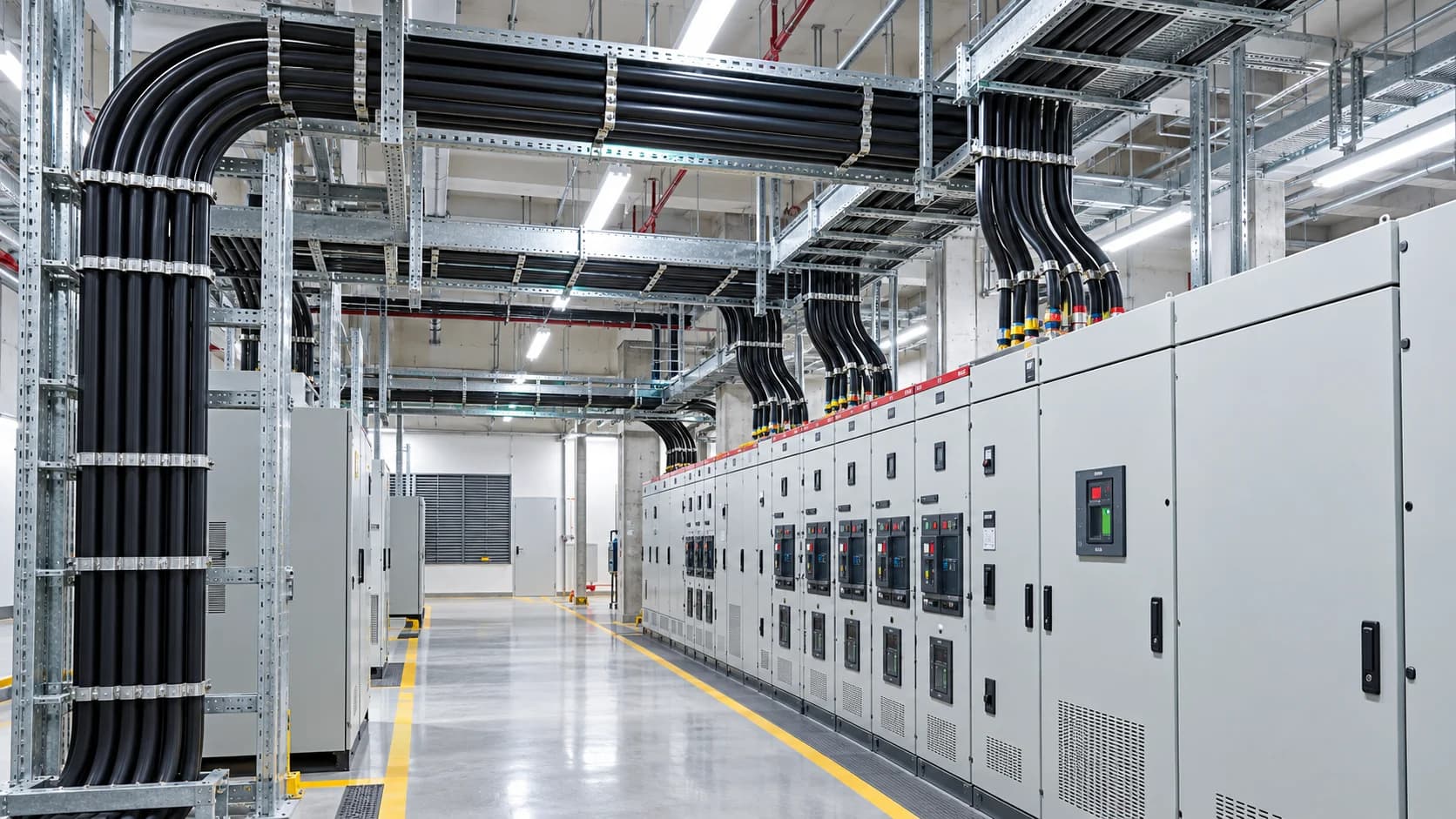

Industrial Power Distribution Systems
YJLV 0.6/1kV Aluminum XLPE Power Cable is used in industrial power rooms and switchgear systems, providing reliable and lightweight power connections for factories and production facilities.

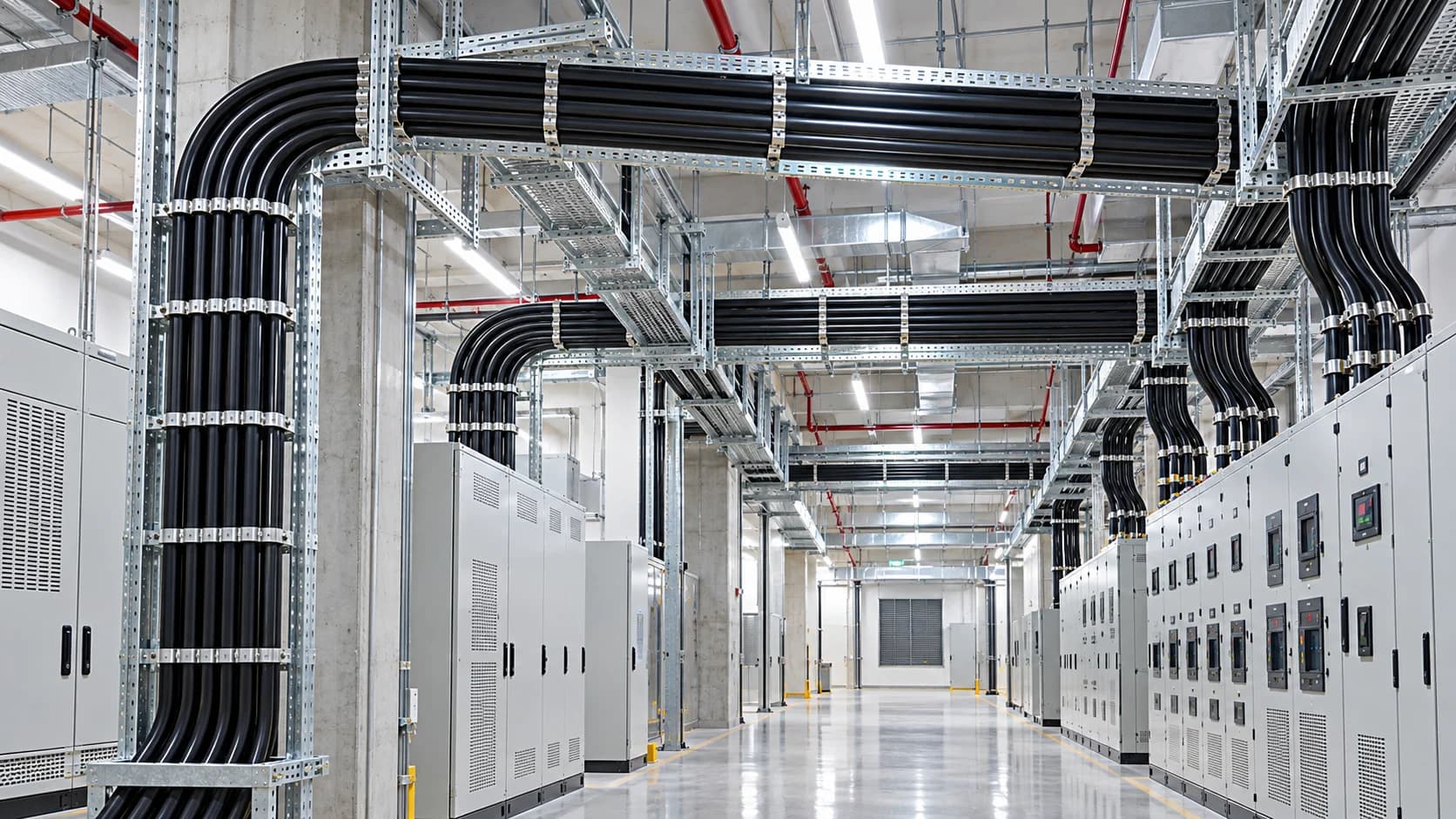

Commercial Building Electrical Systems
YJLV 0.6/1kV Aluminum XLPE Power Cable supports power distribution in commercial buildings through cable trays and electrical rooms with efficient and cost-effective installation.

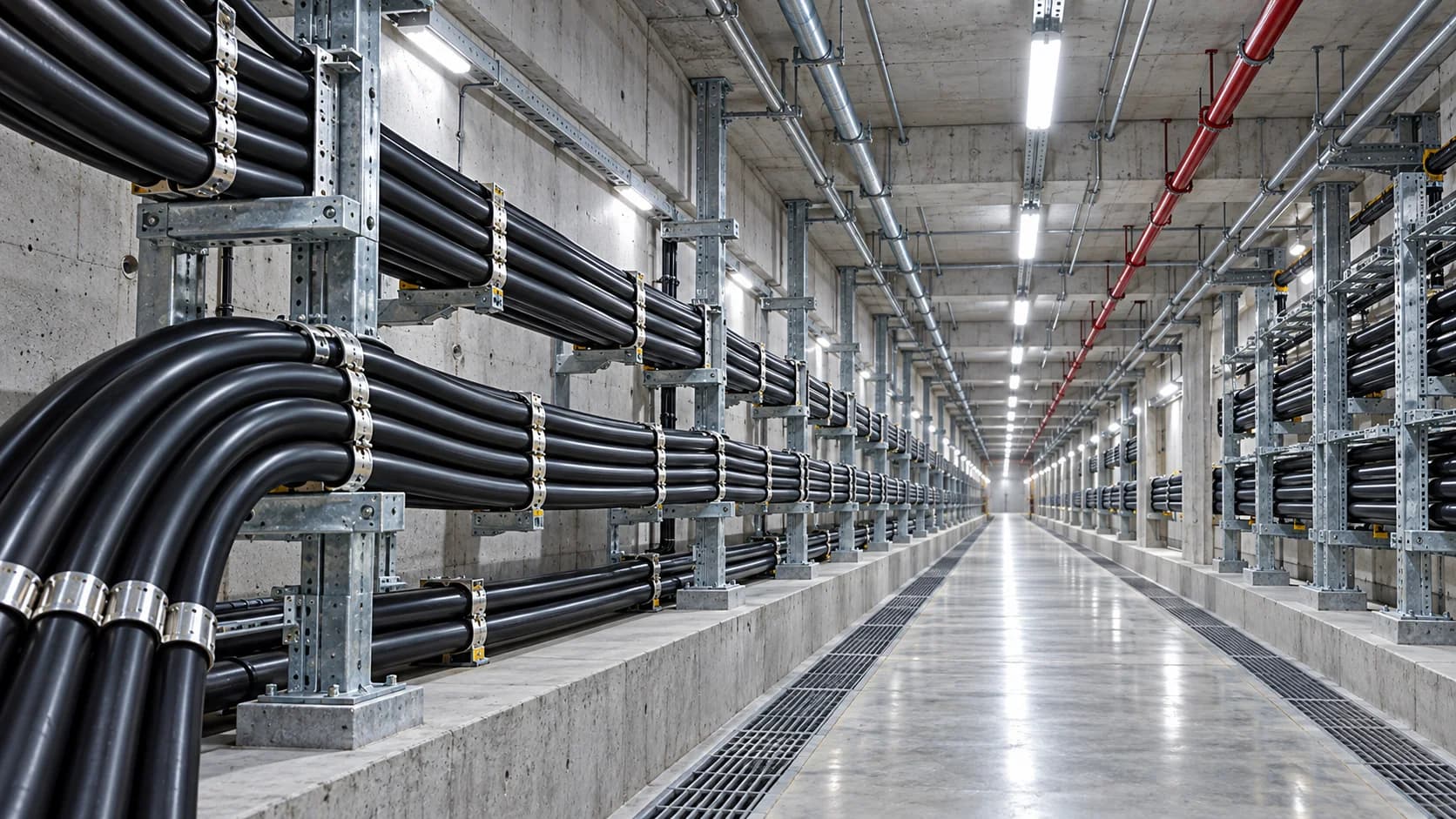

Underground Cable Distribution Networks
YJLV 0.6/1kV Aluminum XLPE Power Cable is suitable for underground ducts and cable tunnels, ensuring stable power transmission with reduced installation weight.

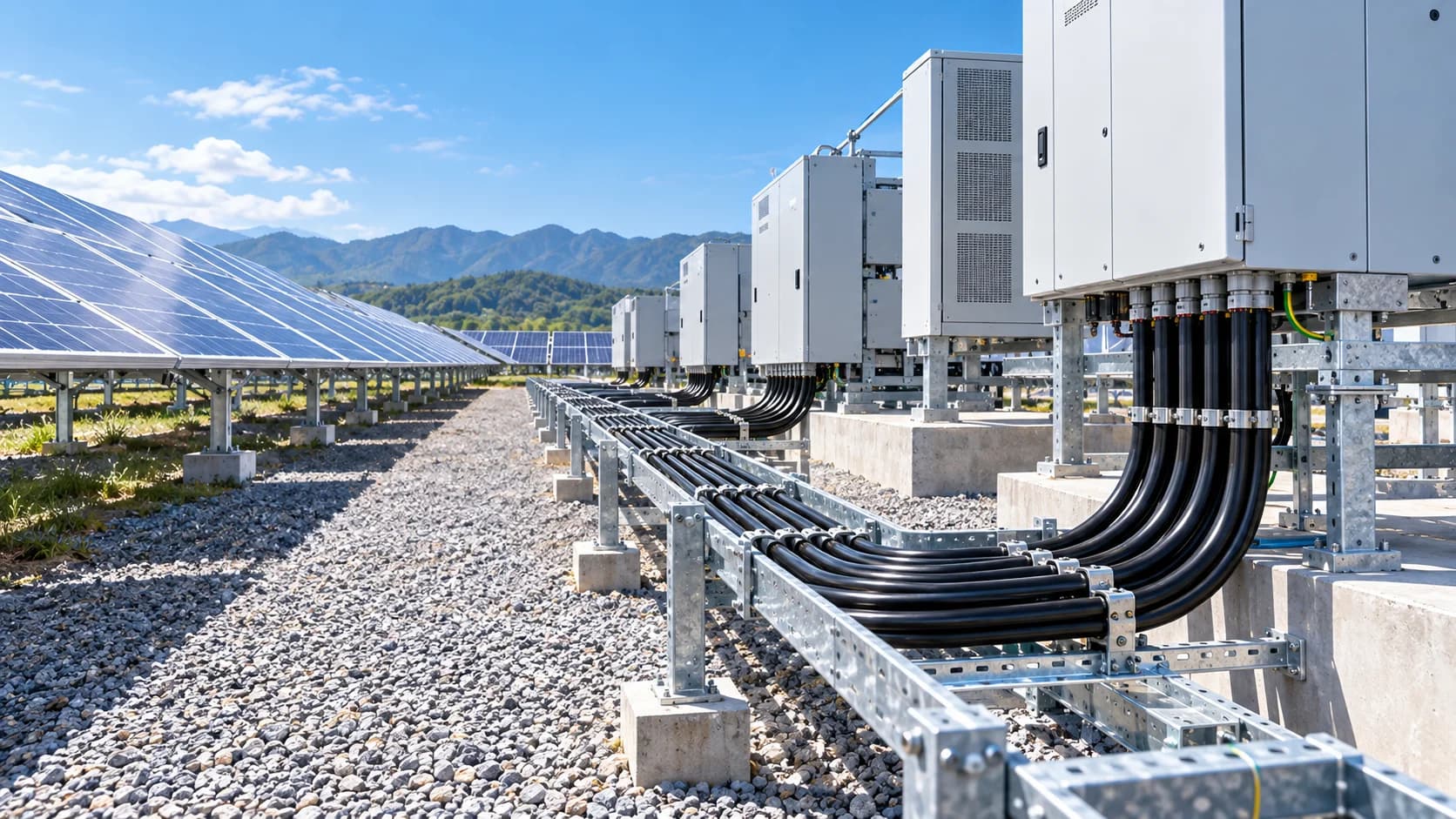

Solar Power Connection Systems
YJLV 0.6/1kV Aluminum XLPE Power Cable is applied in solar energy projects for connecting inverters and distribution equipment with reliable low voltage power transmission.
