YJLV22 0.6/1kV Aluminum XLPE Steel Tape Armored PVC Sheathed Power Cable
YJLV22 0.6/1kV aluminum XLPE armored power cable with steel tape armor and PVC sheath, ideal for industrial and building feeders.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Aluminum Conductor |
| Conductor Class | Class 1 solid or Class 2 stranded aluminum conductor (IEC 60228) |
| Insulation System | XLPE insulation |
| Armoring Type | Steel Tape Armor for mechanical protection |
| Outer Sheath | PVC protective sheath |
| Cable Structure | Aluminum Conductor + XLPE Insulation + Steel Tape Armor + PVC Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 / GB/T 12706.1 |
| Operating Temperature | 90℃ maximum conductor temperature mm² |
| Short Circuit Temperature | 250℃ maximum (5 seconds) |
| Available Sizes | 10mm² to 630mm² |
| Installation Method | Underground distribution networks and direct burial applications |
Compliance Standards
- ✓IEC 60502-1
- ✓IEC 60228 (Conductors)
- ✓GB/T 12706.1
Overview
YJLV22 0.6/1kV aluminum XLPE steel tape armored PVC sheathed power cable features Class 2 stranded aluminum conductor, cross-linked polyethylene insulation, double-layer galvanized steel tape armor, and durable PVC outer sheath. Designed for low-voltage power distribution, underground installation, industrial plants, commercial buildings, and infrastructure projects. Compared with copper cables, YJLV22 provides a cost-effective solution with excellent conductivity, mechanical protection, and long service life while meeting IEC 60502-1 requirements.
Key Features
Cost-optimized aluminum conductor solution
Aluminum conductor reduces material costs significantly compared with copper cables. For large cross-sections such as 95mm² and above, YJLV22 delivers excellent cost efficiency while maintaining reliable current-carrying performance.
Durable steel tape armored protection
Double-layer galvanized steel tape armor provides strong mechanical protection against impact, compression, and external damage, making the cable suitable for underground and industrial installations.
Reliable XLPE insulation performance
Cross-linked polyethylene (XLPE) insulation offers high thermal stability, excellent electrical properties, and long-term aging resistance for safe and reliable low-voltage power transmission.
Designed for demanding power distribution applications
YJLV22 is widely used for underground feeders, industrial plants, commercial buildings, substations, and infrastructure projects requiring stable 0.6/1kV power supply.
Long service life with low maintenance
The robust armored structure and weather-resistant PVC outer sheath help protect the cable in harsh environments, reducing maintenance needs and improving overall installation reliability.
Applications

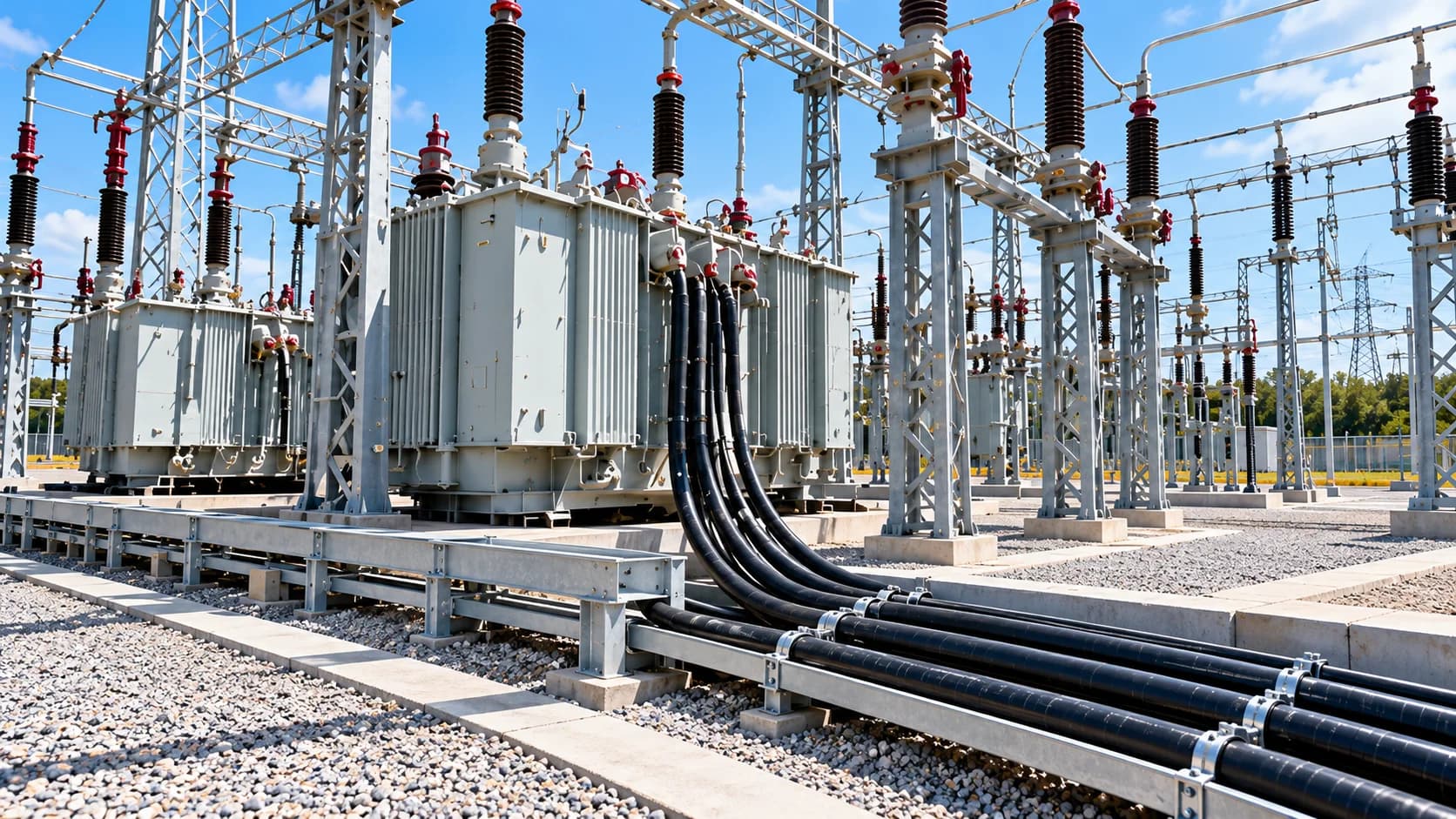

Substation Power Distribution Feeders
YJLV22 cables provide reliable low-voltage power transmission from transformers to distribution panels in substations, ensuring stable operation with strong mechanical protection.

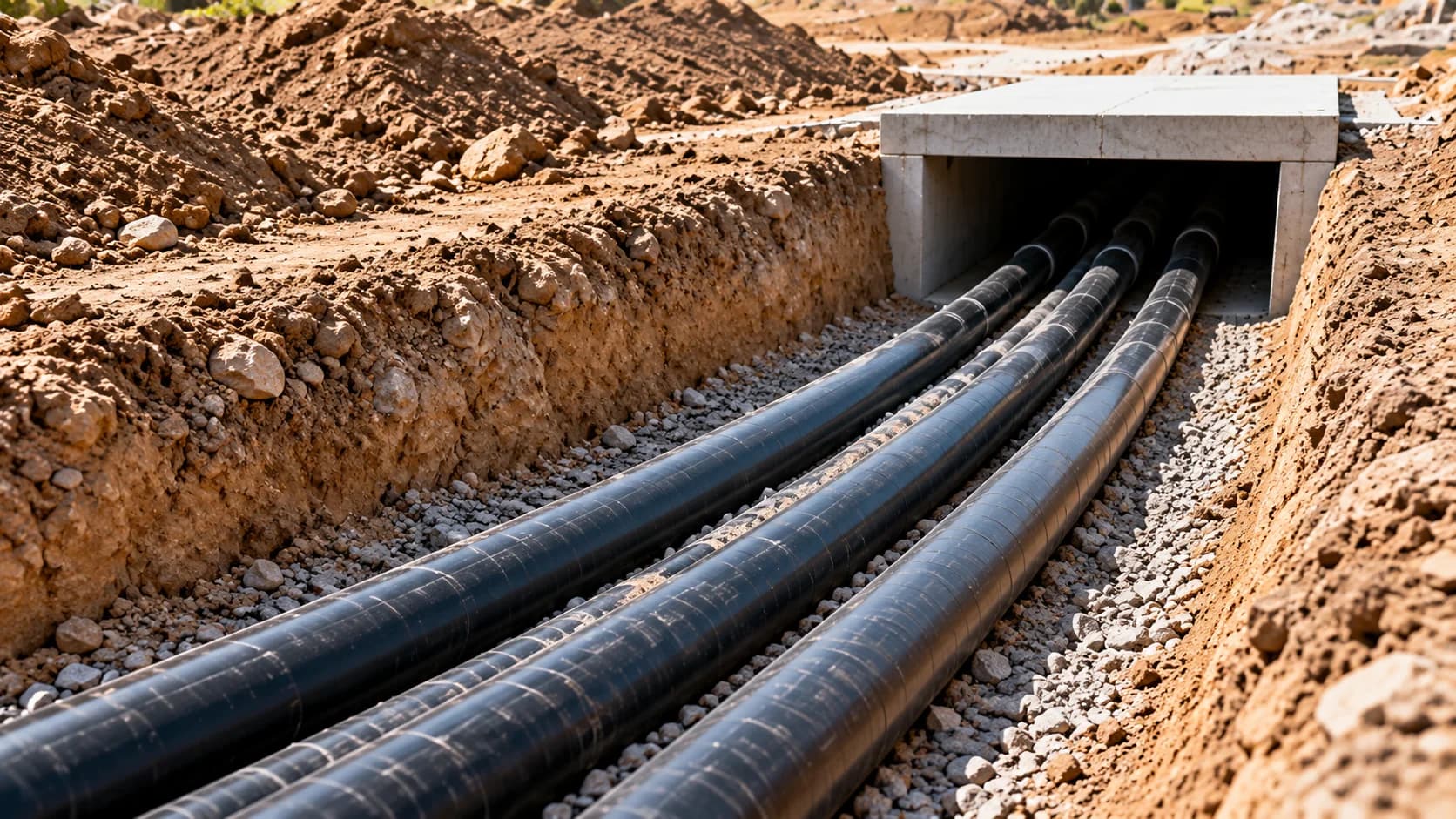

Underground Cable Networks
Designed for buried installations, YJLV22 armored cables offer excellent protection against external impact and are widely used in utility networks, campuses, and infrastructure projects.

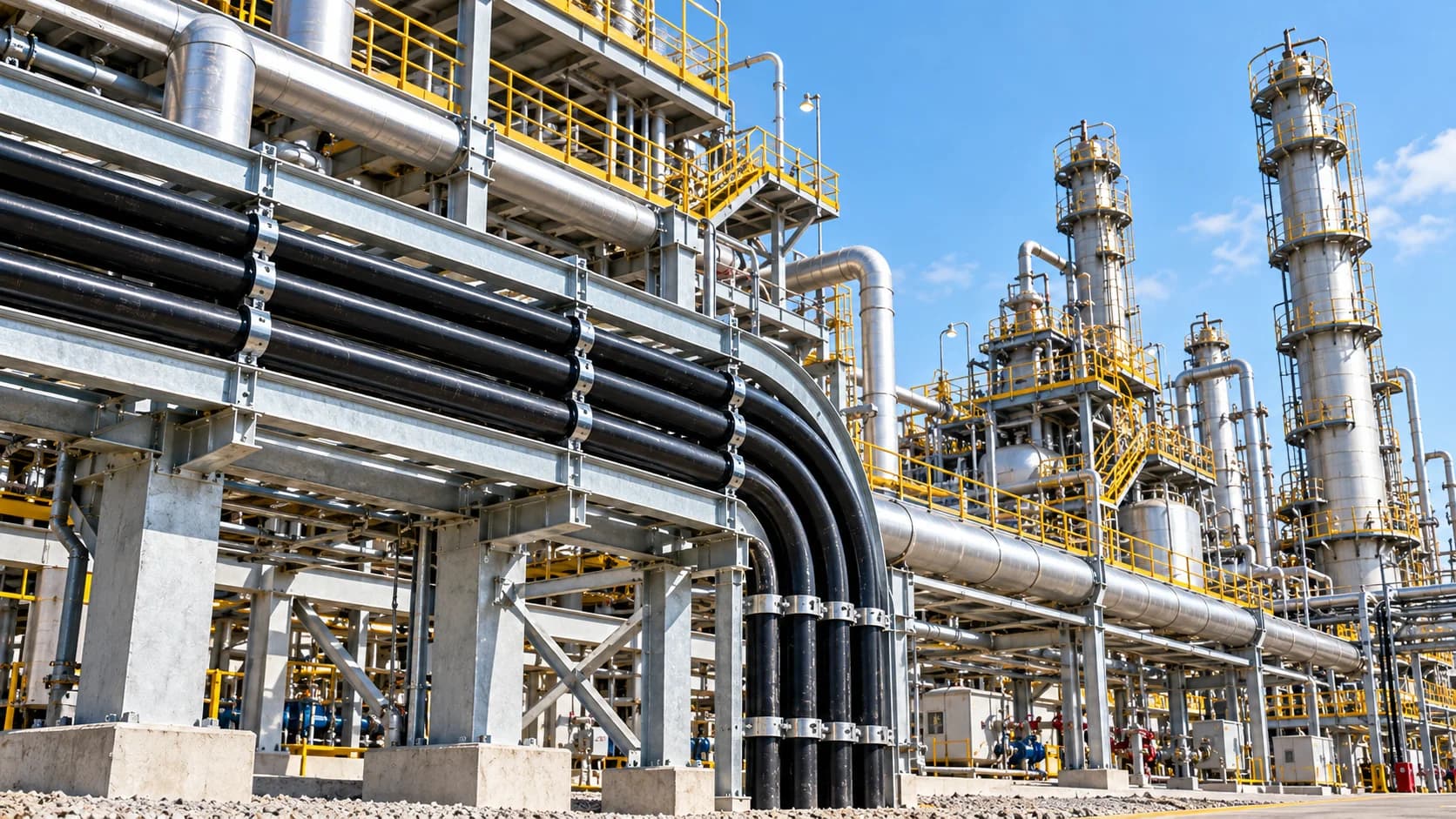

Industrial Plant Power Supply
Suitable for factories, processing plants, and heavy industrial facilities, YJLV22 delivers dependable power distribution for equipment, motors, and production systems.

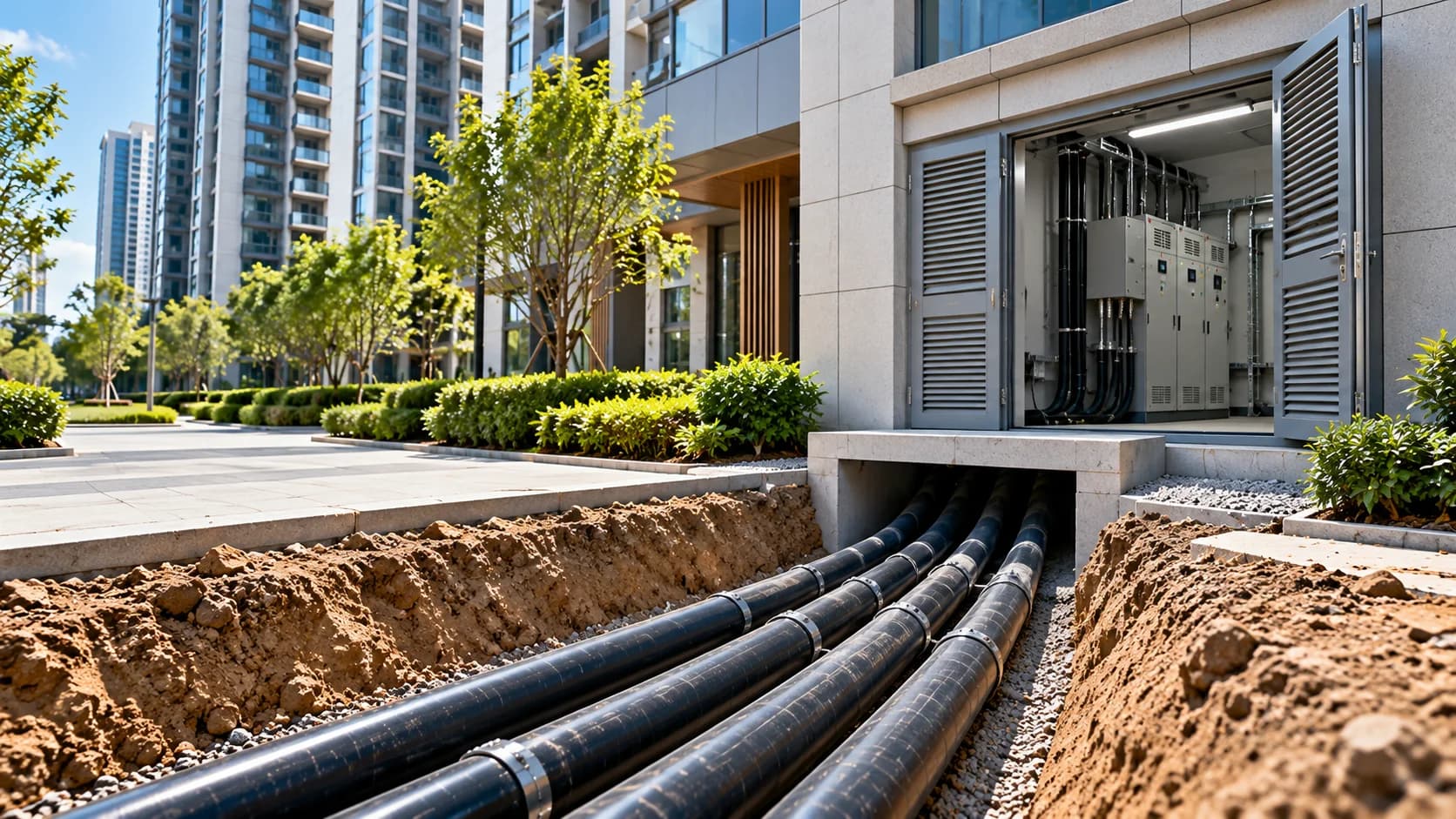

Commercial Building Electrical Systems
YJLV22 supports reliable power supply for commercial buildings, providing safe underground connections between main switchboards and building distribution systems.
