YJLW03 64/110kV Copper Conductor XLPE Insulated Corrugated Aluminum Sheath PE Sheathed HV Power Cable
YJLW03 64/110kV single-core copper power cable featuring XLPE insulation, a corrugated aluminum sheath and a durable PE outer jacket for high-voltage transmission networks.
Technical Specifications
| Conductor Material | Copper |
| Conductor Construction | Compacted stranded copper conductor; segmented conductor design available for large cross-sections as specified |
| Conductor Screen | Extruded semiconductive screen |
| Insulation System | XLPE (Cross-Linked Polyethylene) Insulation |
| Insulation Screen | Extruded semiconductive insulation screen |
| Metallic Screen | According to the approved cable design and fault-current requirements |
| Metallic Sheath | Corrugated Aluminum Sheath with a Longitudinal Welded Seam |
| Outer Sheath | PE (Polyethylene) Outer Sheath |
| Cable Structure | Copper Conductor + Conductor Screen + XLPE Insulation + Insulation Screen + Metallic Screen/Buffer Layers as Specified + Corrugated Aluminum Sheath + PE Outer Sheath kV |
| Available Conductor Sizes | Typically 240–2500 mm², subject to manufacturer production range mm² |
| Operating Temperature | Maximum Continuous Conductor Temperature: 90°C |
| Short-Circuit Temperature | Maximum Conductor Temperature: 250°C for up to 5 Seconds |
Compliance Standards
- ✓GB/T 11017.1-2024
- ✓IEC 60840:2020+A1:2023
Overview
The YJLW03 64/110kV single-core power cable is designed for high-voltage power transmission networks. It features a copper conductor, cross-linked polyethylene (XLPE) insulation, a corrugated aluminum sheath and a protective polyethylene (PE) outer jacket. The XLPE insulation provides reliable electrical insulation and thermal performance, while the corrugated aluminum sheath serves as a metallic moisture barrier and helps protect the cable core. The PE outer jacket provides additional protection against environmental exposure during suitable installation conditions. This cable is suitable for underground power transmission, substations and utility distribution projects, subject to project design requirements. Conductor cross-section, shielding configuration and installation conditions should be confirmed according to the applicable technical specification.
Key Features
Hermetic Corrugated Aluminum Sheath
Corrugated aluminum sheath provides an effective metallic moisture barrier, helping protect the cable insulation system against moisture ingress and supporting reliable long-term underground installation.
High-Performance XLPE Insulation
Cross-linked polyethylene (XLPE) insulation offers excellent dielectric properties, thermal stability and electrical insulation performance for high-voltage power transmission applications.
High-Conductivity Copper Conductor
The copper conductor provides high electrical conductivity and efficient power transmission. Conductor cross-section can be selected according to load requirements and project specifications.
Durable PE Outer Sheath
The polyethylene (PE) outer sheath provides protection against abrasion, environmental exposure and installation-related damage, helping maintain cable integrity under suitable operating conditions.
Reliable 64/110kV Transmission
Designed for 64/110kV high-voltage power transmission networks, the YJLW03 cable is suitable for utility grid projects, substations and other power infrastructure applications.
Flexible Corrugated Sheath Design
The corrugated aluminum sheath design accommodates cable bending during installation while providing mechanical support. Installation must follow the specified minimum bending radius and applicable cable-handling requirements.
Applications

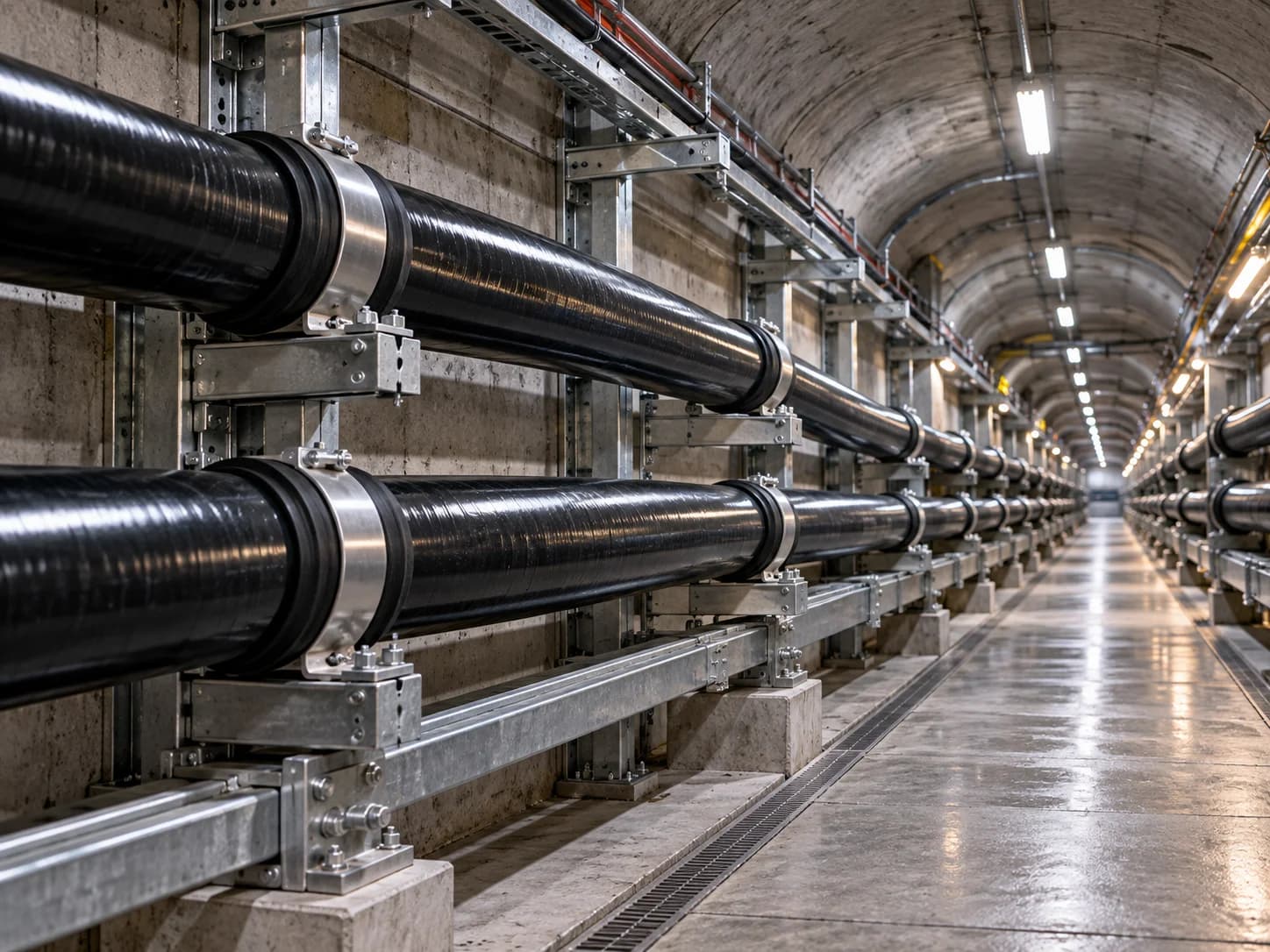

Underground Power Transmission
Designed for underground high-voltage transmission networks, providing reliable power delivery.
Power Substations

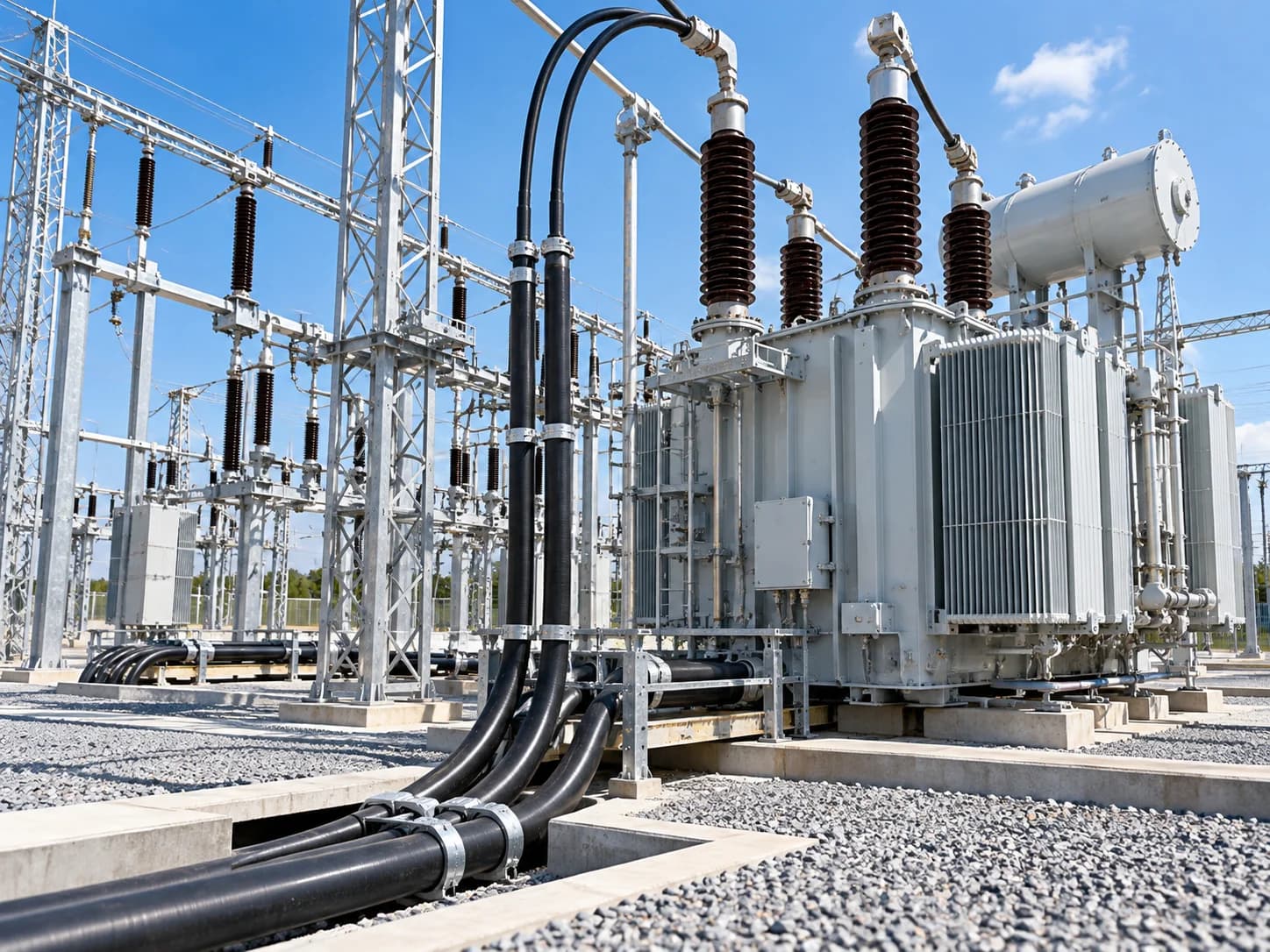

Suitable for high-voltage cable connections in substations and grid infrastructure.
Urban Power Grids

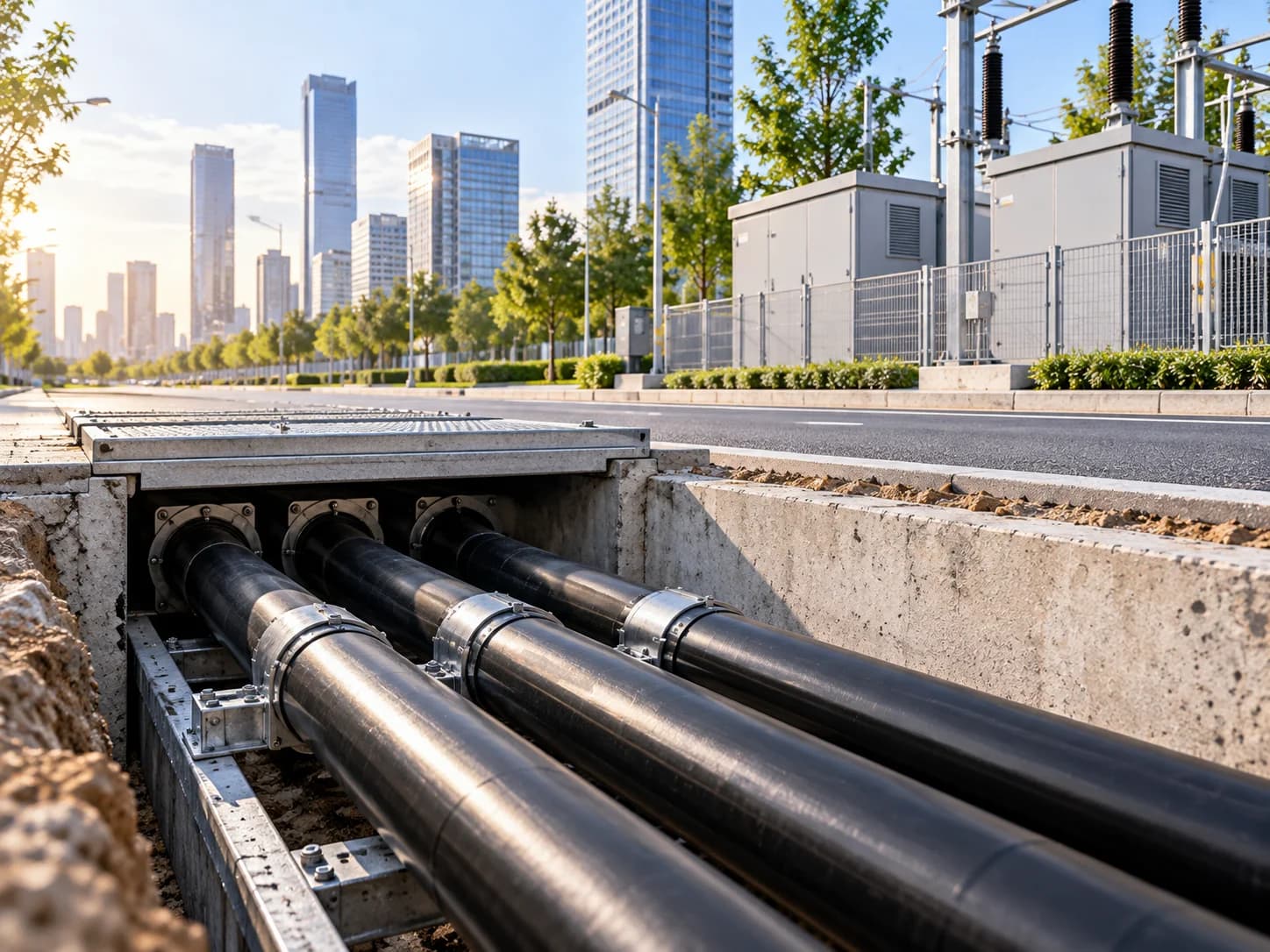

Supports urban power transmission projects and underground utility networks.
Industrial Power Supply

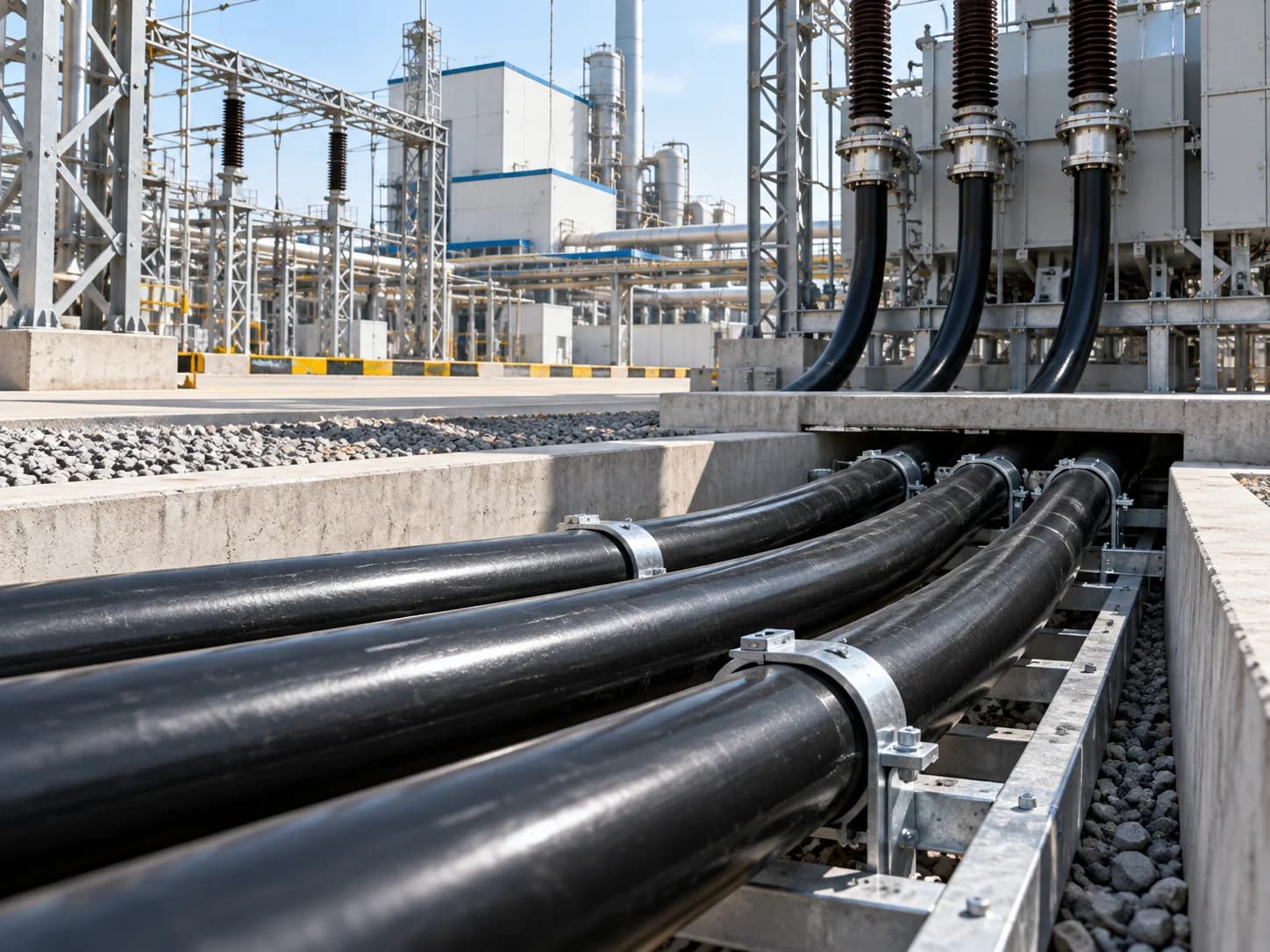

Suitable for high-voltage power supply systems in industrial facilities and manufacturing plants.
